Unpacking the Lightning Speed: The Architecture of High-Frequency Trading Systems

High-Frequency Trading (HFT) is more than just fast trading; it’s a relentless pursuit of speed, engineered not for milliseconds, but for microseconds and even nanoseconds.

In the competitive arena of financial markets, being first to react to new information can mean the difference between immense profit and significant loss. This article dives deep into the actual architecture behind these lightning-fast systems, exploring how market data is ingested, how an in-memory order book functions, how decisions are made using FPGAs and sophisticated strategy engines, and how orders are routed to exchanges with unparalleled speed.

We will walk through a real-world architecture, breaking down each critical component, from ultra-low latency Network Interface Cards (NICs) and kernel bypass techniques to event queues, nanosecond clocks, pre-trade risk engines, and smart order routers. Whether you are a software engineer, a quantitative analyst, or simply someone fascinated by high-performance computing, this exploration will illuminate the intricate engineering that powers the world’s fastest financial machines.

What is High-Frequency Trading (HFT)?

At its core, HFT is the use of sophisticated algorithms and powerful computing machines to trade financial instruments — such as stocks, options, or futures — at extremely high speeds. We’re talking about thousands to millions of trades per second, all transpiring faster than a human can blink. The primary objective is to capture tiny profits, sometimes merely a fraction of a cent per trade, but to do so at such immense volume and velocity that it aggregates into substantial gains.

HFT systems continuously scan the market for microscopic inefficiencies: fleeting price discrepancies between different exchanges, temporary imbalances within an order book, or slight delays in price updates. Their goal is to exploit these ephemeral opportunities before any other participant can react. To achieve this, speed is paramount. A single millisecond delay can translate into a missed opportunity or, worse, a financial loss. This is why HFT systems are engineered with the same meticulous precision as Formula 1 race cars; every component, from the network card to the lines of code, is ruthlessly optimized for ultra-low latency.

In financial markets, being first offers a significant advantage. The system that reacts fastest to new market data can capitalize on it, while others merely follow. Consider a market-making strategy: you might continuously place a buy order at $9.99 and a sell order at $10.01 for a particular stock. If someone accepts your sell order at $10.01, you’ve just earned a 2-cent spread. Now, imagine executing this thousands of times across hundreds of different stocks every second. This relentless pursuit of micro-profits defines HFT.

1. Market Data Ingestion: The First Nanoseconds

The first, and arguably most critical, step in an HFT pipeline is the reception of market data. This isn’t your standard consumer-grade API or WebSocket feed. HFT systems demand a real-time, uninterrupted stream of prices, volumes, and order book updates directly from stock exchanges like NASDAQ, NYSE, or CBOE.

Collocation and Network Topology

To minimize the physical distance data must travel (and thus latency), HFT firms invest heavily in collocation facilities. These are highly secure data centers physically located within the same building, or at least in very close proximity (often on the same floor or within direct fiber reach), to the exchange’s matching engines. This strategic placement ensures that the raw data travels mere meters, rather than across continents, shaving off precious microseconds.

Within a collocation facility, the network topology is designed for extreme speed. This often involves:

• Direct Cross-Connects: Dedicated fiber optic cables that directly link the HFT firm’s servers to the exchange’s network, bypassing intermediate switches or routers that could introduce latency.

• Minimal Hops: Network paths are engineered to have the fewest possible network devices (switches, routers) between the exchange and the trading server. Each hop adds measurable latency.

• High-Bandwidth, Low-Latency Switches: Specialized switches with extremely low port-to-port latency and high throughput are used. These are often purpose-built for financial applications.

Exchanges typically disseminate market data via multicast feeds. Unlike unicast (one-to-one) or broadcast (one-to-all), multicast allows the exchange to send a single stream of data packets to a group of subscribed recipients simultaneously. This is a highly efficient way to distribute large volumes of real-time data to multiple trading firms without overwhelming the exchange’s infrastructure. These feeds deliver raw, often proprietary, binary protocols. For example:

• NASDAQ’s ITCH (Island Technology Common Hotlink): A raw, uncompressed binary data feed providing order-by-order information. It shows every order placed, modified, or canceled, offering a granular view of market depth.

• NASDAQ’s OUCH (Order Update and Confirmation Host): A companion protocol for sending orders and receiving execution reports.

• NYSE’s UTP (Unlisted Trading Privileges) or SIAC (Securities Industry Automation Corporation) feeds: Similar proprietary binary feeds for NYSE and other exchange groups.

• FIX (Financial Information eXchange): While common for general trading, raw binary exchange feeds are often a more compact and faster-to-parse alternative to FIX for critical market data. HFT firms may use a subset of FIX or a binary version for order entry but prefer raw feeds for market data.

These binary protocols are meticulously designed for compactness and efficient parsing, often omitting delimiters and using fixed-length fields to minimize processing overhead.

Specialized Hardware: Ultra-Low Latency NICs

The data arrives at the firm’s servers through highly specialized hardware: Ultra-Low Latency Network Interface Cards (NICs). Companies like Solarflare (now part of Xilinx/AMD), Mellanox (now NVIDIA), and ExaNIC are prominent providers of these NICs. What makes them “ultra-low latency”?

• Hardware Offloads: They offload common network processing tasks (like TCP checksum calculation, segmentation, and reassembly, or even partial TCP/UDP stacks) from the host CPU to dedicated hardware on the NIC. This frees up CPU cycles for core trading logic and eliminates context switches.

• Reduced Jitter: Designed to minimize variations in latency, ensuring predictable and consistent data delivery, which is more critical than raw average speed for HFT.

• Direct Memory Access (DMA): They support direct data transfer from the NIC’s receive buffers straight into pre-allocated application memory buffers without requiring CPU intervention for data copying, significantly reducing latency and CPU utilization.

• Receive Side Scaling (RSS): Distributes incoming network traffic across multiple CPU cores, allowing for parallel processing of market data.

• Hardware Filtering: NICs can be programmed to filter packets in hardware (e.g., by IP address, port, or specific byte patterns), dropping irrelevant data before it even reaches the CPU.

Kernel Bypass Mechanisms

Even with specialized NICs, the standard operating system (OS) network stack introduces significant overhead due to context switches between user and kernel space, data copying between kernel and user buffers, and general protocol processing. To circumvent this, HFT systems employ kernel bypass mechanisms.

• DPDK (Data Plane Development Kit): An open-source set of libraries and drivers that allows user-space applications to directly control the NIC and handle network packets, bypassing the kernel entirely. DPDK utilizes a poll mode driver (PMD), where the CPU core dedicated to network I/O continuously polls the NIC for new packets, rather than waiting for interrupts. This eliminates interrupt latency and context switching. Applications link directly to DPDK libraries to manage network I/O, often running on dedicated CPU cores to avoid preemption. The architecture often follows a run-to-completion model, where a single thread processes a batch of packets from reception to application-level parsing without yielding the CPU.

• Solarflare OpenOnload / ExaNIC: Proprietary kernel bypass solutions tied to specific hardware. OpenOnload, for instance, operates by using the LD_PRELOAD mechanism to interpose on standard socket API calls (send, recv, epoll, select, etc.). It then redirects these calls to its own user-space TCP/IP stack, allowing applications to use standard POSIX socket APIs while still benefiting from kernel bypass and direct hardware interaction. ExaNIC offers similar capabilities, providing direct access to network frames from user space with very low latency.

These mechanisms allow the system to process market updates in microseconds, sidestepping the overhead of regular network stacks and directly feeding raw data into the application’s memory.

Market Data Feed Handlers

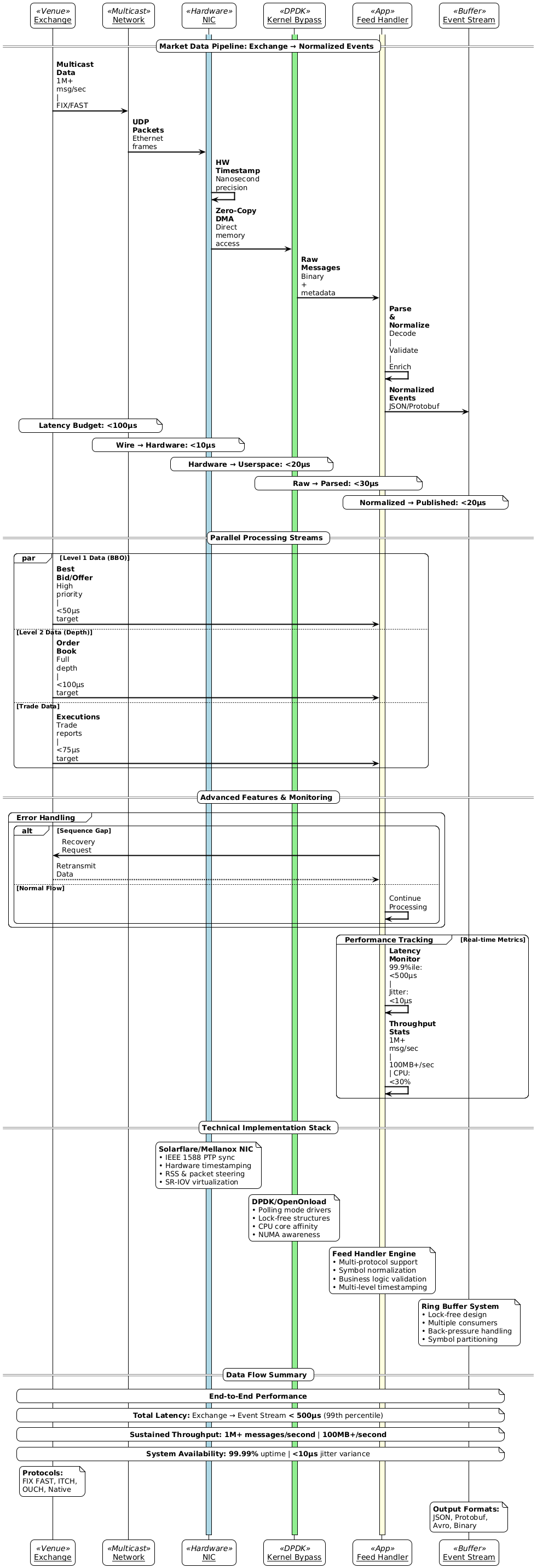

Once the raw multicast stream is received (often via DMA directly into user-space memory buffers), the Market Data Feed Handler takes over. This is a critical software component, typically a highly optimized C++ application, designed for extreme performance and correctness. Its sole purpose is to:

1. Parse Raw Stream: Decode the proprietary binary protocols used by exchanges (e.g., ITCH, UTP). This involves parsing byte streams into structured messages. Sophisticated parsing strategies are employed, such as:

Stateless Parsers: Each message is parsed independently.

• Stateful Parsers: Maintain context (e.g., sequence numbers, checksum states) across messages.

• Code Generation: Some firms use code generators to create highly optimized parsing logic from protocol definitions, often leveraging template metaprogramming in C++ for compile-time optimization.

• Checksum Validation: Critical for data integrity, often involving hardware checksum offloads or highly optimized CRC algorithms in software.

1. Decode and Normalize: Translate the exchange-specific binary format into a common, internal data format that the rest of the HFT system can understand. This involves mapping exchange-specific fields (e.g., order ID formats, price representations) to a standardized internal representation. This normalization is crucial for a unified internal logic regardless of the source exchange.

2. Timestamping: Accurately timestamp each incoming message. This often involves reading the hardware timestamp from the NIC as soon as the packet arrives and associating it with the parsed market data event. As we’ll see, nanosecond precision timestamps are vital for accurate analysis and decision-making.

3. Publish: Push the normalized, timestamped market data into an internal event stream or queue for consumption by downstream components (e.g., the in-memory order book, strategy engines). This often involves writing to a lock-free ring buffer.

This component must handle millions of messages per second without dropping a single packet or introducing significant latency, making it one of the most performance-sensitive parts of the system. Its efficiency is measured in nanoseconds per message.

2. In-Memory Order Book Management

Once market data is ingested and decoded, the next critical step is updating the Order Book. This is a live, dynamic snapshot of all current buy (bid) and sell (ask) orders for a particular financial instrument at various price levels.

The Need for In-Memory and Cache Optimization

HFT systems maintain the entire order book in memory to completely eliminate any disk I/O or database latency. Even the fastest NVMe SSDs are orders of magnitude too slow for HFT. The order book is updated in real time with every incoming market data message (new orders, cancellations, modifications, executions), triggering a precise update to its internal state.

Beyond just being in memory, the order book’s data structures are meticulously designed for CPU cache locality. This means arranging data in memory so that frequently accessed items are physically close together, minimizing cache misses and maximizing performance by keeping data in the CPU’s faster L1/L2/L3 caches. Techniques include:

• Contiguous Memory Allocation: Using custom allocators or pre-allocated memory pools (e.g., jemalloc, tcmalloc) to ensure that related data is stored contiguously.

• Padding: Adding dummy bytes to data structures to ensure they align with cache lines (typically 64 bytes), preventing false sharing between CPU cores.
